Description

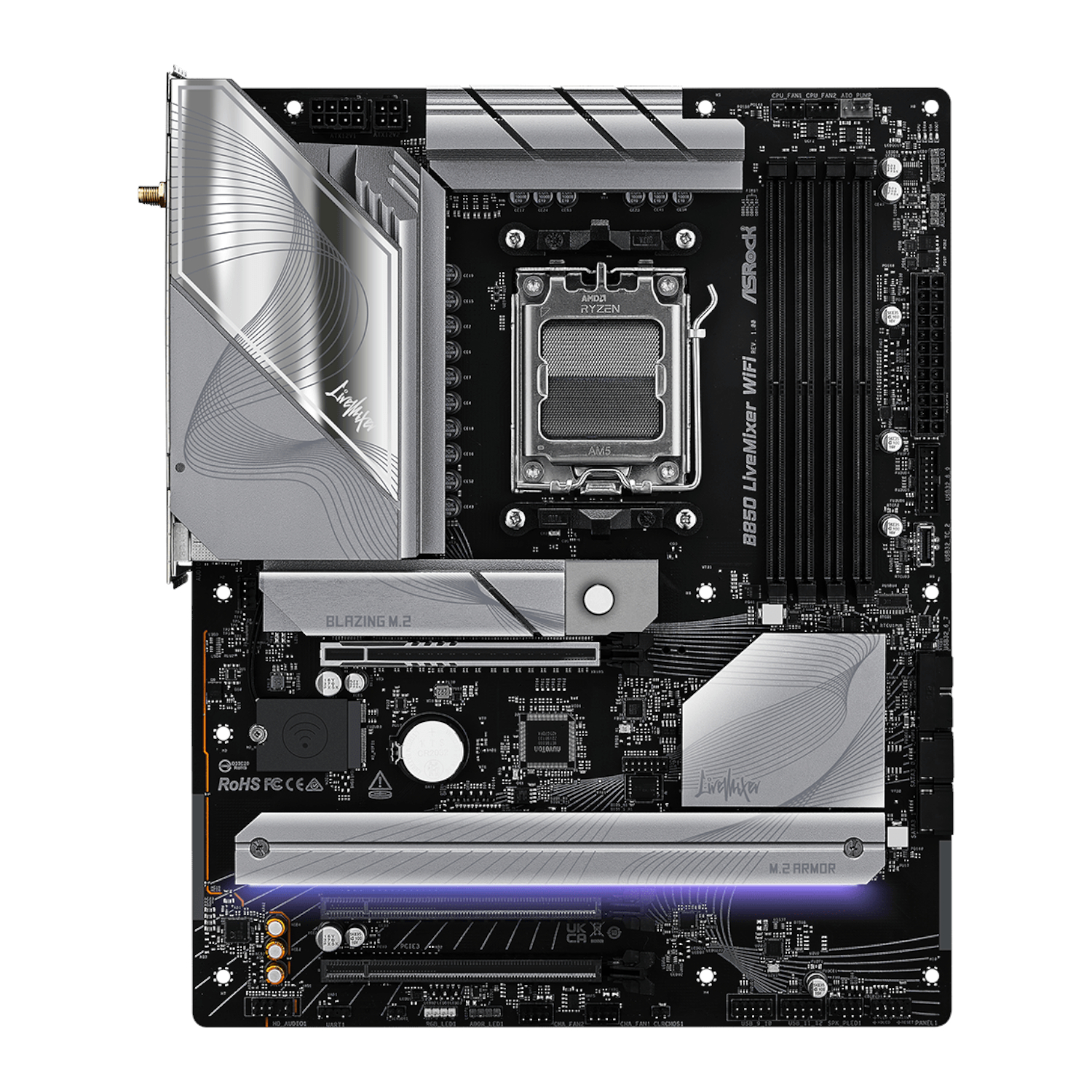

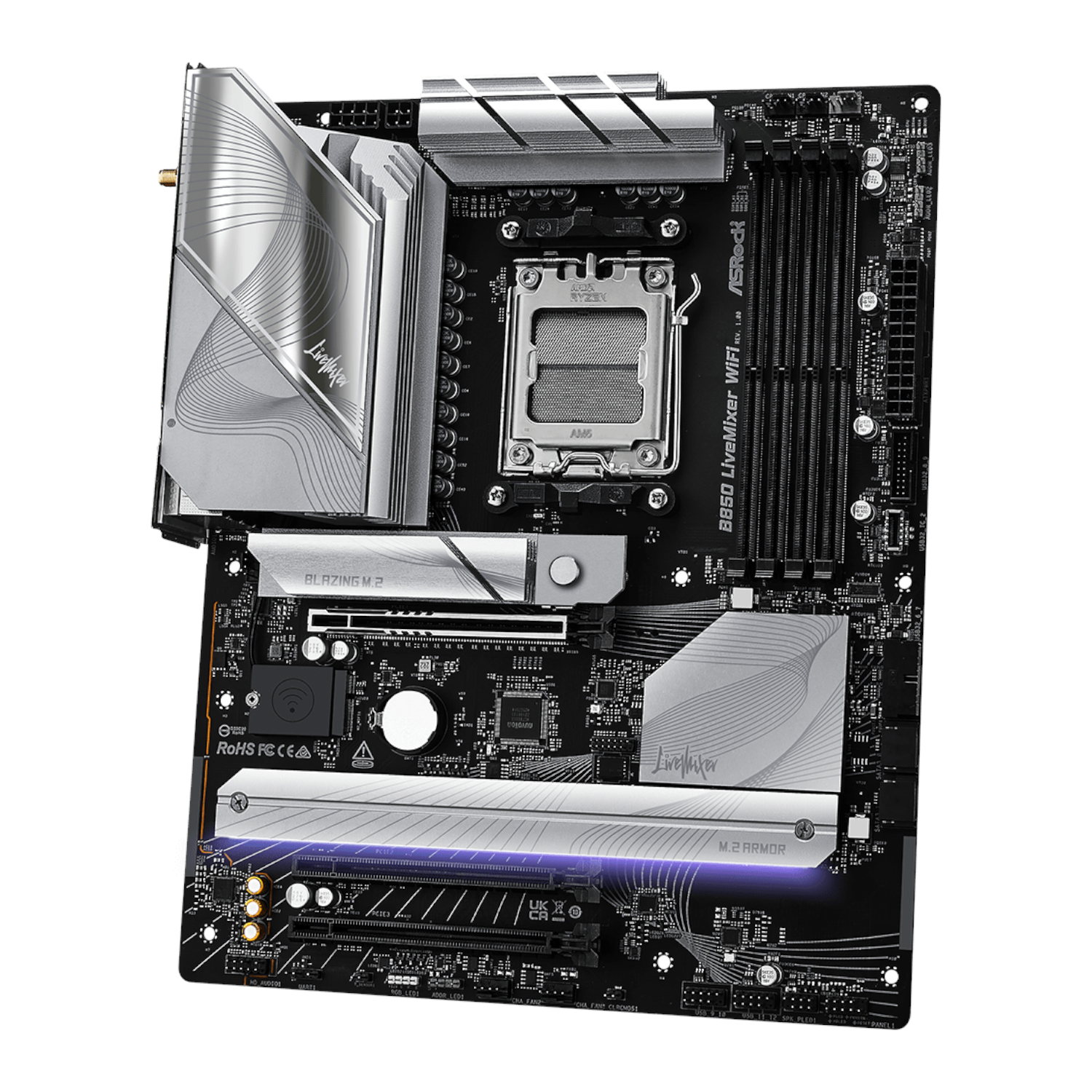

The ASRock B850 LiveMixer WiFi is an ATX gaming motherboard for AMD Ryzen 9000, 8000 and 7000 Series processors on the AM5 platform. It combines DDR5 memory support, PCIe 5.0 graphics and storage connectivity, Wi-Fi 7, 2.5G LAN and extensive USB connectivity for modern gaming and content-creation systems.
High-performance AM5 platform
Built around AMD’s B850 chipset, the B850 LiveMixer WiFi provides strong power delivery and flexible expansion for gaming, streaming and demanding desktop workloads.
- AMD B850 chipset with AM5 socket
- Supports Ryzen 9000, 8000 and 7000 Series processors
- Four DDR5 DIMM slots supporting up to 256GB
- DDR5 speeds up to 8000+ MT/s with overclocking
- 14+2+1 phase power design with 80A Dr.MOS
- PCIe 5.0 x16 graphics slot
- Two PCIe 4.0 x16 slots operating at x4
- One PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots
- Two SATA 6Gb/s connectors
- 802.11be Wi-Fi 7 and Bluetooth 5.4
- Realtek 2.5G LAN
- Realtek ALC1220 7.1-channel audio with Nahimic Audio
Extensive connectivity
The LiveMixer WiFi provides a comprehensive selection of high-speed connectivity, including front USB 3.2 Gen 2×2 Type-C, rear USB 3.2 Gen 2 Type-C, multiple USB 3.2 Gen 1 ports and HDMI 2.1 and DisplayPort 1.4 outputs. BIOS Flashback and ASRock Post Status Checker also simplify system setup and troubleshooting.
