Description

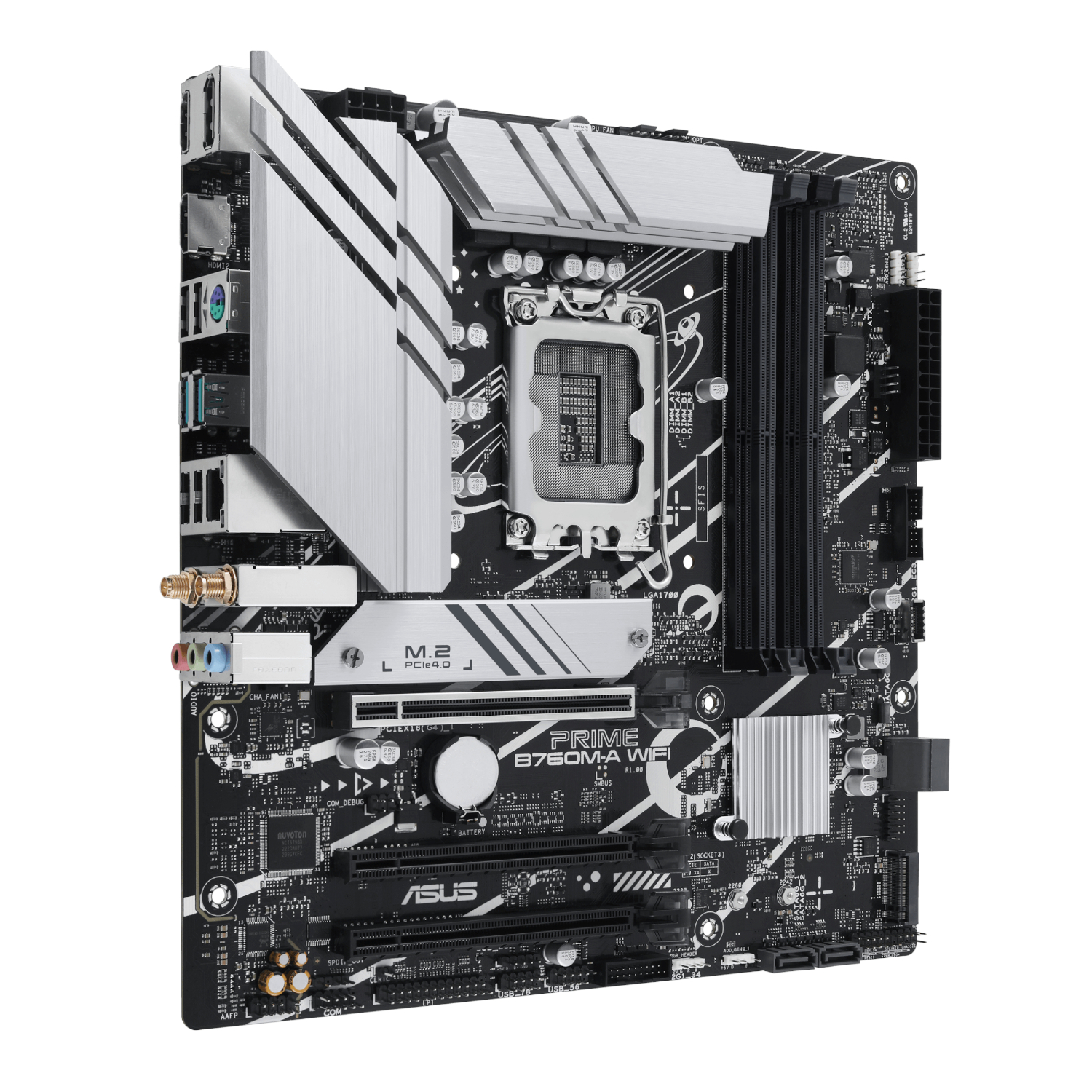

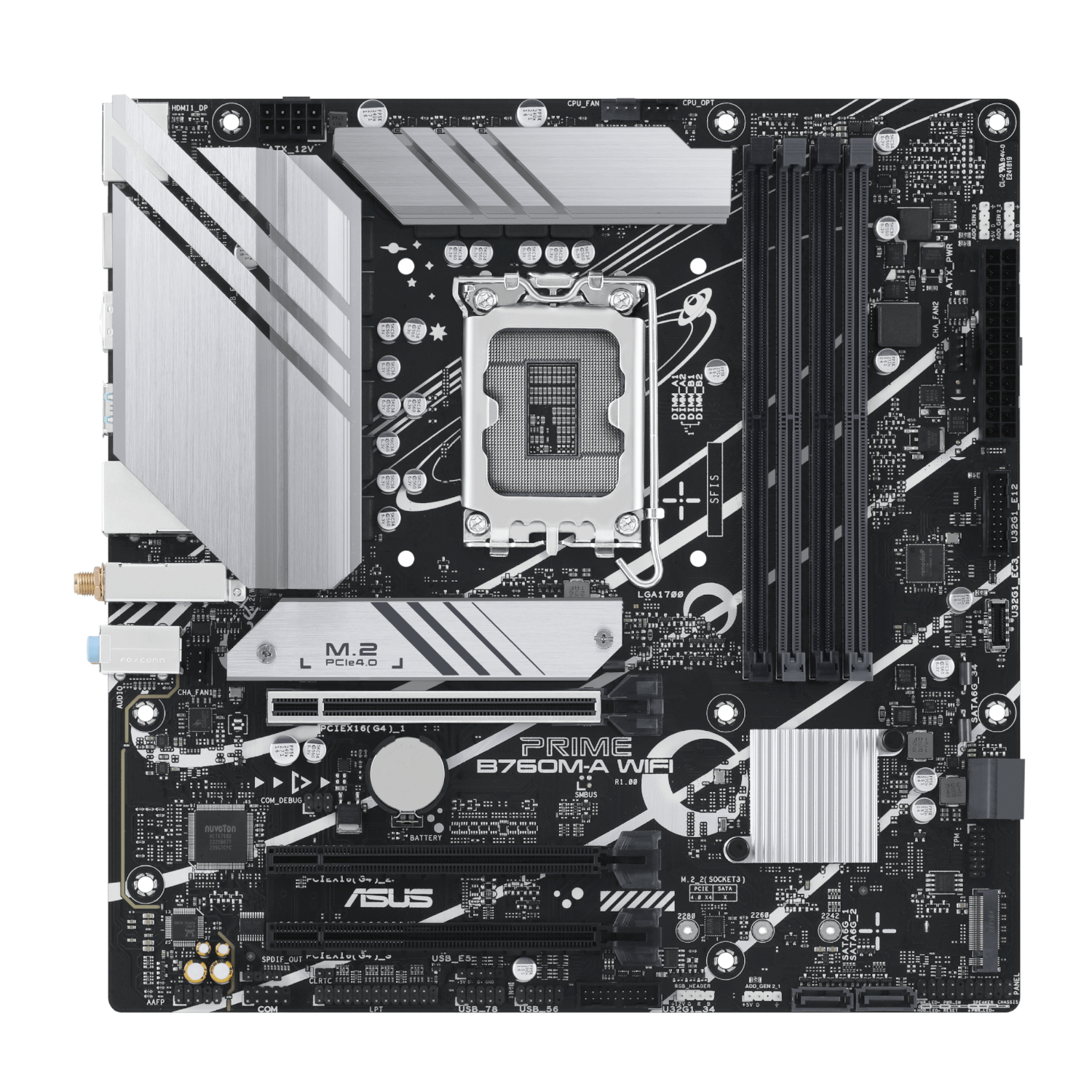

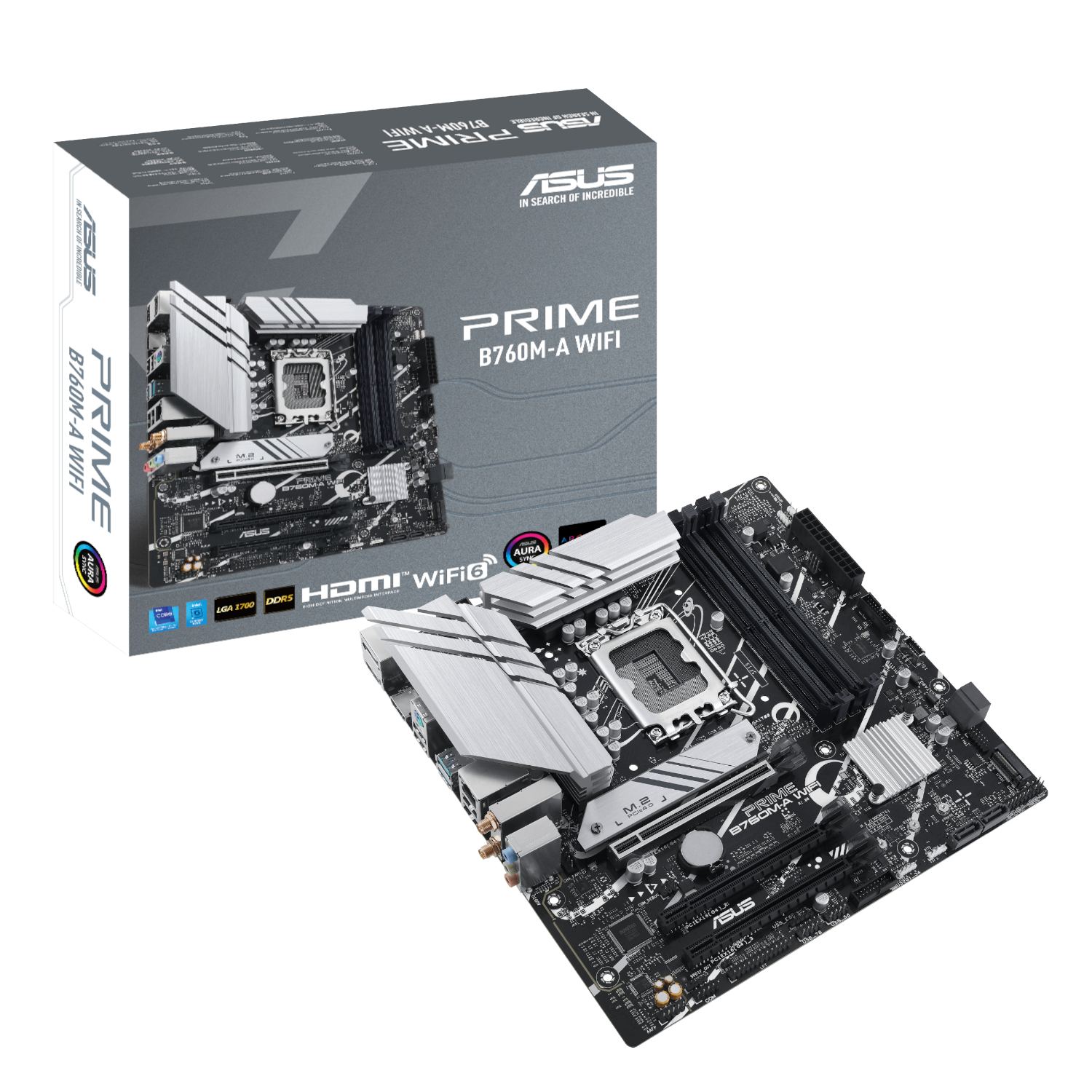

The ASUS Prime B760M-A WiFi is a versatile Intel LGA1700 Micro-ATX motherboard designed for 14th, 13th and 12th Gen Intel Core processors, as well as compatible Pentium Gold and Celeron CPUs. It combines DDR5 memory support, PCIe 4.0 expansion, dual M.2 storage, Wi-Fi 6 and 2.5G Ethernet in a compact platform for gaming, productivity and everyday systems.
Performance & Expansion
Four DDR5 DIMM slots support up to 192GB of memory, with speeds up to 7200+ MT/s through overclocking. The board also provides three PCIe 4.0 x16-length slots and two PCIe 4.0 x4 M.2 slots for graphics, expansion cards and high-speed NVMe storage.
- Intel LGA1700 socket supporting 14th, 13th and 12th Gen Intel Core processors
- Four DDR5 DIMM slots supporting up to 192GB and 7200+ MT/s (OC)
- PCIe 4.0 x16 graphics slot with additional PCIe 4.0 expansion slots
- Two PCIe 4.0 x4 M.2 slots for NVMe storage
- Four SATA 6Gb/s ports
- Realtek 2.5G Ethernet and Wi-Fi 6 wireless connectivity
Connectivity & Features
The Prime B760M-A WiFi includes Wi-Fi 6, Bluetooth 5.2 and Realtek 7.1-channel high-definition audio. ASUS also equips the board with Q-LED Core, Q-DIMM, Q-Slot, M.2 heatsink, DIGI+ VRM and Aura Sync RGB support for easier installation and system configuration.
