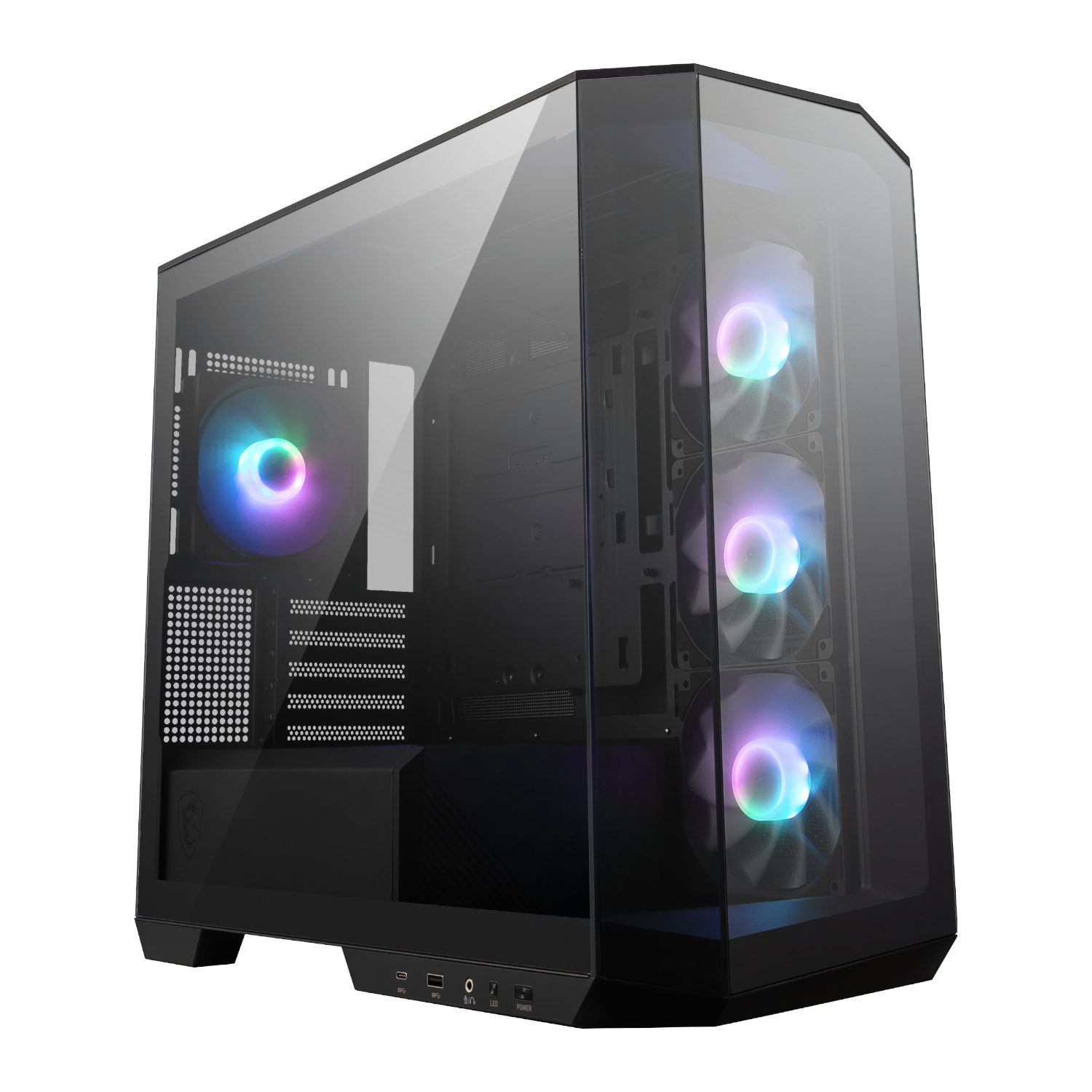

The MSI MAG PANO M100R PZ is a compact Micro-ATX gaming chassis designed around a striking 270-degree panoramic tempered-glass view. It supports back-connect Micro-ATX motherboards, includes four pre-installed ARGB PWM fans and provides extensive cooling support for modern gaming hardware.
Panoramic gaming design
The PANO M100R PZ combines a clean showcase interior with a compact Micro-ATX footprint and dedicated airflow for high-performance components.
- Micro-ATX tower chassis with 270-degree panoramic tempered glass
- Supports Micro-ATX back-connect and standard Micro-ATX motherboards
- Supports Mini-ITX motherboards
- Four pre-installed 120mm ARGB PWM fans
- Three reverse-blade ARGB fans mounted on the side
- Supports up to 10 × 120mm system fans
- Graphics cards up to 390mm in length
- CPU air coolers up to 175mm in height
- ATX power supplies up to 200mm in length
- Five expansion slots
- Top radiator support up to 360mm
- Built-in 1-to-4 ARGB-PWM control board
- USB 3.2 Gen 2×2 Type-C front connectivity
Flexible cooling and connectivity
The chassis provides multiple fan mounting positions across the top, side, rear, bottom and PSU shroud. The top supports 120mm, 240mm and 360mm radiators, while the rear supports 120mm and 140mm radiators. Storage includes dedicated 2.5-inch mounting plus a combined 2.5/3.5-inch bay.
