Description

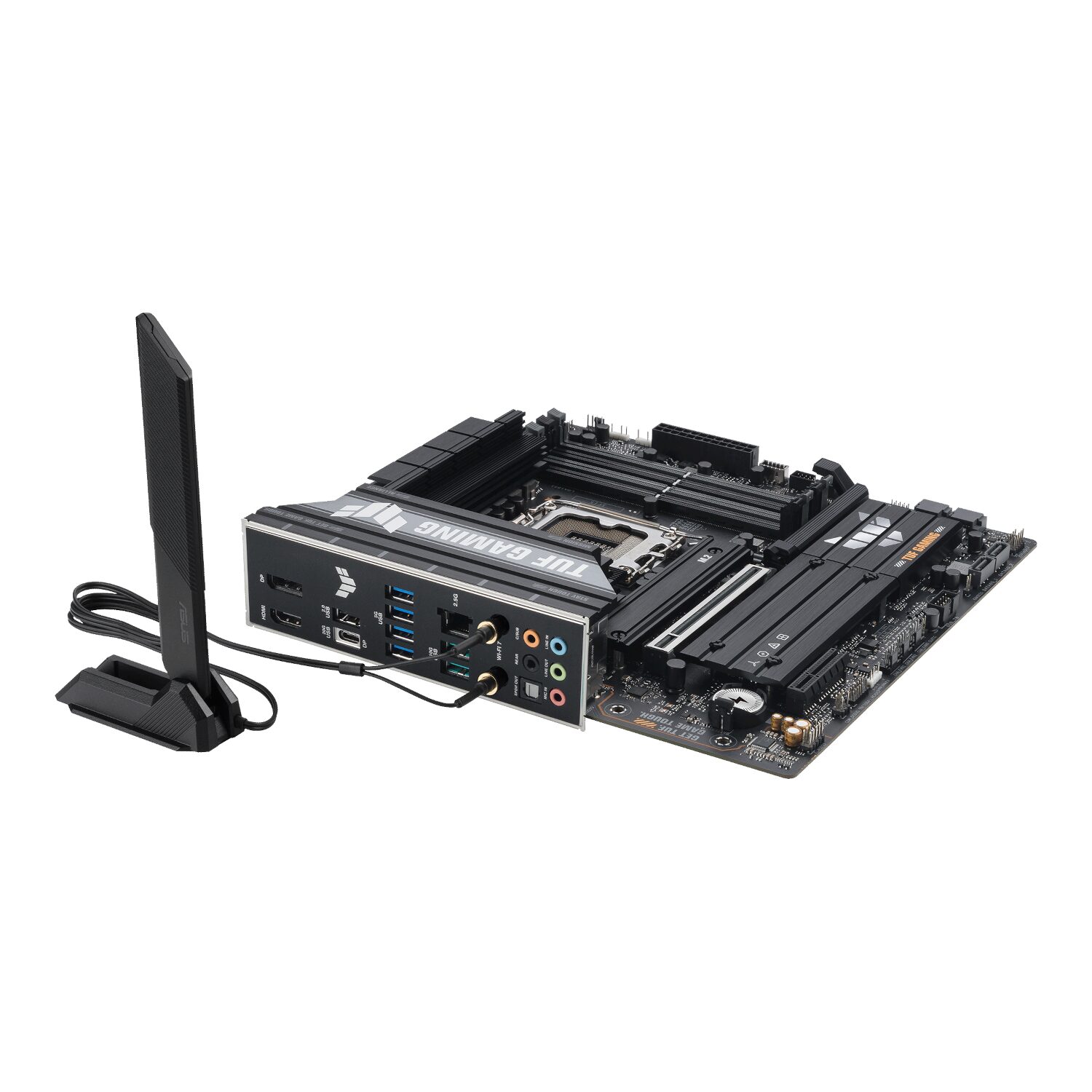

The ASUS TUF Gaming B860M-PLUS WiFi is a durable Intel LGA1851 Micro-ATX motherboard built for Intel Core Ultra Processors (Series 2). It combines DDR5 memory support, PCIe 5.0 graphics connectivity, high-speed NVMe storage, Wi-Fi 7 and 2.5G Ethernet in a compact gaming platform.
Performance & Expansion
Four DDR5 DIMM slots support up to 256GB of memory and speeds up to 8800+ MT/s (OC). The motherboard provides a PCIe 5.0 x16 graphics slot, PCIe 4.0 expansion and three M.2 slots, including a PCIe 5.0 x4 connection for next-generation NVMe SSDs.
- Intel LGA1851 socket for Intel Core Ultra Processors (Series 2)
- Intel B860 chipset with four DDR5 DIMM slots supporting up to 256GB
- DDR5 support up to 8800+ MT/s (OC) with XMP and ASUS Enhanced Memory Profile III
- PCIe 5.0 x16 graphics slot and PCIe 4.0 x4 expansion slot
- One PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots
- Four SATA 6Gb/s ports
Connectivity & Gaming Features
The B860M-PLUS WiFi features 2×2 Wi-Fi 7 with support for the 2.4GHz, 5GHz and 6GHz bands, Bluetooth 5.4 and Realtek 2.5G Ethernet. It also provides USB 20Gbps Type-C connectivity, Realtek 7.1-channel audio, BIOS and DIY-focused ASUS Q-Design features.
